Basic Info.
Model NO.
YS7008-7025
Weave Type
Plain Woven
Fiberglass Type
E-Glass
Alkali Content
Alkali Free
Thickness
0.13-0.3mm
Surface Coating
PTFE
Basic Fabric
Fiberglass Fabric
Adhesive
Hot Melt
Width
Max 125cm Cut to Any Size
Transport Package
as Per Customer Request
Specification
0.13mm -0.3mm thickness
Trademark
Youngsun
Origin
Taixing, Jiangsu
HS Code
3921909090
Production Capacity
10000m2/Week
Product Description

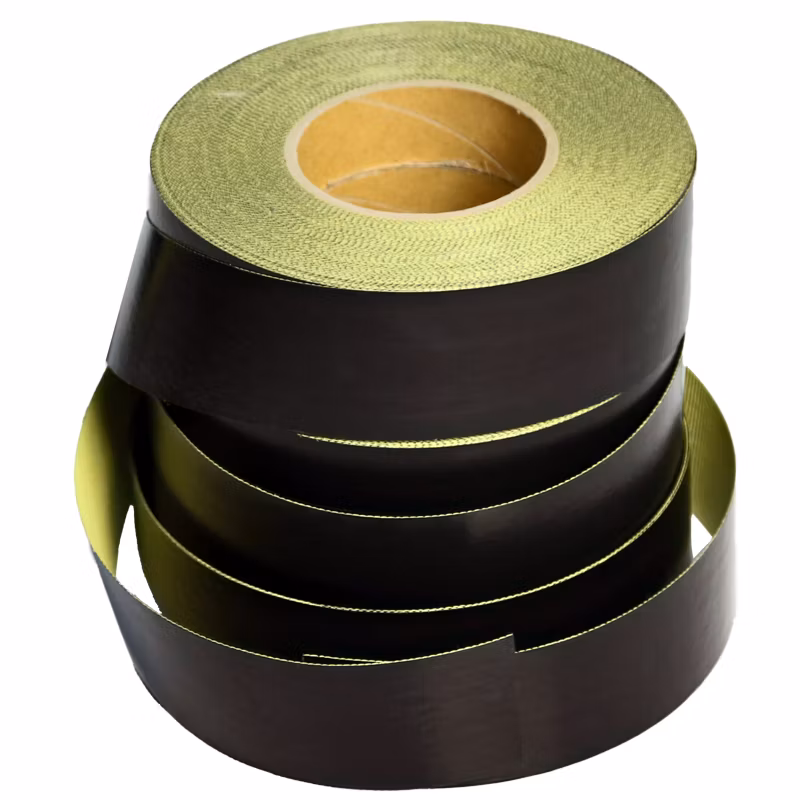

Description:Youngsun PTFE Coated Glass Fabric Tape is using glass cloth base material impregnated with PTFE (polytetrafluoroethylene) dispersion and then sintered. Single surface treated and coated with a high-temperature, silicone pressure-sensitive adhesive. Youngsun PSA products can be supplied as log rolls or slitted tapes. Yellow textured PVC release liner is applied to the adhesive surface for ease of application. Self-wound rolls are available (without liner).
PTFE Adhesive Tapes - PTFE coated adhesive backed tapes are high performance products that offer excellent release characteristics whilst being able to cope with extreme tempretures. They are manufactured with a high temperature resistant surface with pressure sensitive silicone adhesive.
Applications
PTFE adhesive tapes are often used as a release tape for the protection of sealing jaws and heat-sealing wires on equipment such as bag and L- sealing machines. They can also be found in vacuum and blister packing operations too.
Features & Benefits
Non stick PTFE materials prevent the build up of molten film and plastic on its surface.
The temperature resistant PTFE coating allows high and low operating temperatures.
A yellow corrugated release liner is used on our PTFE tapes providing fast and easy removal.
Manufactured in varying thicknesses to cover a wide range of applications our PTFE tapes are of the highest quality available in today's market.
Material Properties
· Temperature resistance: -70° C up to plus 230° C
· Non-Stick optimal release
· Pressure sensitive silicone adhesive
· Thermostatic cycles of 4 hours at 200oc
· Low friction
· Exceptional wear life
Additional Information
Available in widths from 5mm up to 1000mm wide and are slit from stock.
Rolls lengths of 30/50 metres as standard.
Please contact our sales team to make your enquiry, details are available upon request.
| Model | Thickness | Max Width | Length Range | Colour Available | Temperature Range | |
| mm | mil | |||||
| YS-F7008 | 0.08 | 3.0 | 1250mm | 10~55m | Brown/White/Black | -70~260° C |
| YS-F7013 | 0.13 | 5.0 | 1250mm | 10~55m | Brown/White/Black | -70~260° C |
| YS-F7018 | 0.18 | 7.0 | 1250mm | 10~55m | Brown/White/Black | -70~260° C |
| YS-F7025 | 0.25 | 10.0 | 1250mm | 10~55m | Brown/White/Black | -70~260° C |
| Industry | Youngsun product application specification |
| Plastic | High frequency welding/Carpet/synthetic leather/Foam industry |
| Package | Heat-sealing/poly bag manufacturing/Shrink tunnels |
| Electronic | Conveyor belts for ink drying PCB/UV dry tunnels |
| Food/Drug | Baking sheets/Belt for food transportation |
| Textile | Dryer belts/Roller covering/compacting felt/silicon belt |
| Garment | Fusing press belt/Dryer belt |
| Chemical | Protective curtains/Isolation Release material |
| Architectural | Roof structure/Tents |
| Abrasives | Release sheet for grinding wheel manufacturing |
| Rubber curing | Rubber curing transportation |
| Laminate/adhesive | Car laminating/Wood decoration |
